Product Detail

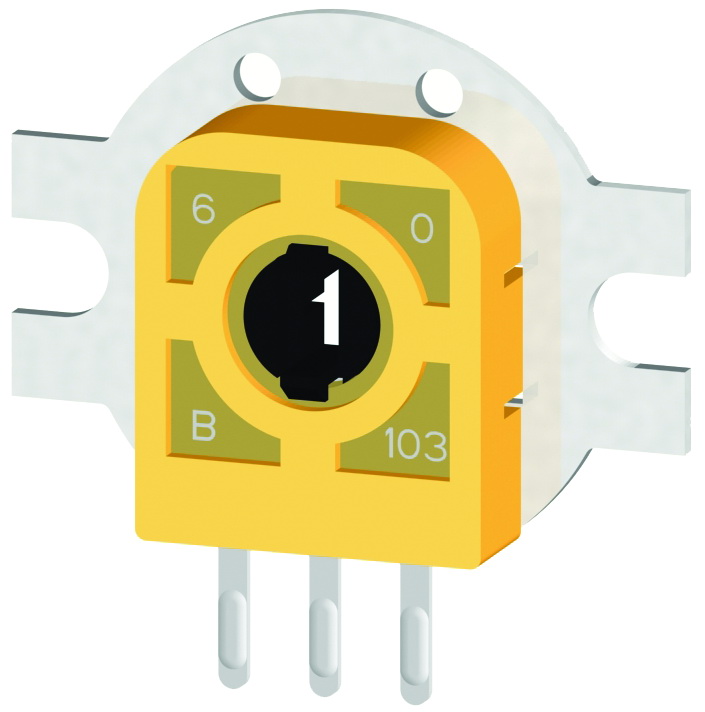

Series F10K
Package diameter 10mm
Operating Direction Vertical
Bushing material
Number of Gangs
Power-linear
Power-audio
Life cycle
Switch Option N/A
Detent Option N/A
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse
Shaft material N/A
Life cycle
Operating type
Power rating
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1.Carbon element.

2.Inserting molding around the resistor with resin.

3.Long life, Miniature structure .

Electrical characteristics
Total Resistance  10KΩ~100KΩ
Total Resistance Tolerance  ± 20%
Resistance Taper  B
Rated Power  0.0125W
Withstand Voltage  1minute.at AC 250V
Insulation Resistance  More than 100MΩ at DC 250V 1 Minute
Max. Operating Voltage  AC50V, DC 5V
Mechanical characteristics
Total Rotational Angle  360°
Rotational Torque  Less than 50gf
Push Strength of Shaft  2.0Kgf Min.
Durability
Rotational Life  Standard life: 1Million Cycles Min.: Long life: 2Million Cycles Min.
