| Series | F03 |
| Package diameter | |
| Operating Direction | Horizontal |
| Bushing material | |
| Number of Gangs | |
| Power-linear | 0.1W Max |
| Power-audio | 0.05W Max |
| Life cycle | 5K |
| Switch Option | |
| Detent Option | Y |
| Mounting | |
| Element | 1-2 |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | 4 |
| Lever length | 2 |
| Turns | |
| Specification | Document download |

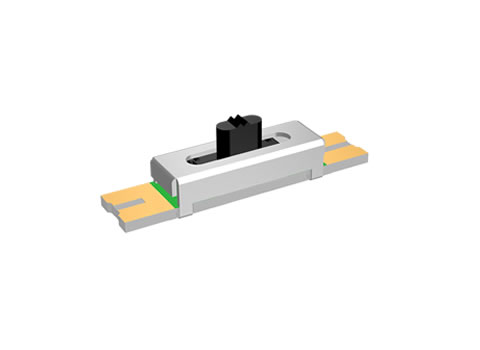

Introdution
1.Carbon element.
2.Microminiature type.
3.PCB base plate with copper.
| Electrical characteristics | |
| Total Resistance | 500Ω~100KΩ |
| Total Resistance Tolerance | ± 20% |
| Resistance Taper | A, B |
| Withstand Voltage | 1 minute at AC 100V; |
| Insulated Resistance | More than 50MΩat DC 100V; Sliding Noise; Less than 100mV |
| Residual Resistance | Term.1~2: Less than 10Ω; Term.2~3: Less than 10Ω |
| Gang Error (Dual Unit) | - 40dB~0dB±3dB |
| Rated Voltage | B Taper: 50V~200V |
| Rated Power (Single Unit/Dual Unit) | 0.01W~0.05W |
| Mechanical characteristics | |
| Slide Torque | 5gf~90gf |
| Click torque | 30gf~160gf |
| Stopper Strength | 2.5Kgf Min (from the base level to a point of 2 mm) |
| Level Wobble | 2 (2XL)/25mm Max (L: Level length both sides) |
| Level Push-Pull Strength | 1.0Kgf Min at 10Sec. |
| Sliding Life | 5,000 Cycles Min |
.jpg)
