| Series | Fxx46 |
| Package diameter | |
| Operating Direction | Horizontal |
| Bushing material | |
| Number of Gangs | |
| Power-linear | 0.25W |
| Power-audio | 0.125W |
| Life cycle | 200K |
| Switch Option | |
| Detent Option | N/A |
| Mounting | |
| Element | 2 |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | 45/60 |
| Lever length | 8/15/16/20/25 |
| Turns | |
| Specification | Document download |

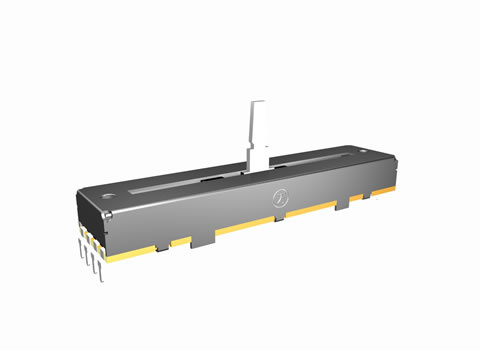

Introdution
1.Metal housing.
2.Available with tap.
3.Center detent option.
4.Metal slide rod type.
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Total Resistance Tolerance | 500 Ω |
| Resistance Taper | A, B, C |
| Withstand Voltage | 1 minute at AC 100V |
| Insulated Resistance | More than 100MΩ at DC 100V |
| Sliding Noise | Less than 100mV |
| Residual Resistance | Term.1~2: Less than 1Ω; Term.2~3: Less than 1Ω |
| Gang Error (Dual Unit) | -40dB~0dB±3dB |
| Max Operating Voltage | DC 20V |
| Rated Power | Linear Taper B: 0.25W; Other Tapers: 0.125W |
| Mechanical characteristics | |
| Slide Travel | 45mm, 60mm |
| Operating Torque | Less than 50gf |
| Stopper Strength | 5.0Kgf.cm (from the base level to a point of 2mm) |
| Level Wobble | 2(2xL)/20mm Max. (L: Level length both sides) |
| Level Push-Pull Strength | 5.0Kgf Min at 10Sec. |
| Durability | |
| Slide Life | 200,000 Cycles Min. |
