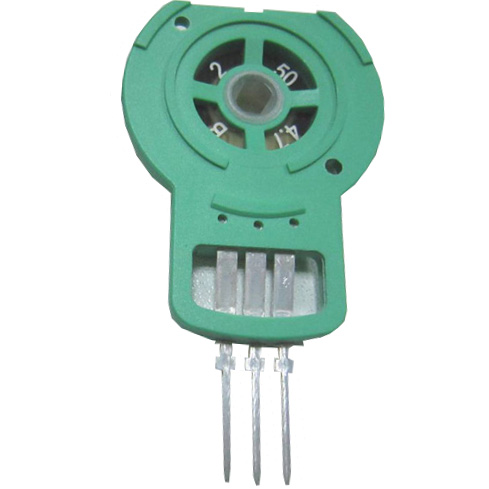

| Series | FSE28 |
| Package diameter | 17mm |
| Operating Direction | |
| Bushing material | |
| Number of Gangs | |
| Power-linear | |
| Power-audio | |
| Life cycle | 200K cycles |
| Switch Option | N/A |
| Detent Option | N/A |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | +/-20% |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | Rotary |
| Power rating | 0.1W |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
1.FR-4 element materials compliant to flow high peak temperature lead free soldering.
2.Long life,over 200,000 Cycles .
Electrical characteristics
Resistance Range
1K~100K
Total Resistance Tolerance
±20%
Taper Style
B taper
Power Rated
0.1W
Linearity
±2%
Contact Noise
Within 10% TR
Rated Voltage
DC 5V±0.5V
Mechanical characteristics
Electrical Angle
250°±3
Rotational Torque
0~50gf.cm
Push Pull Strength of Shaft
1.0kgf for 10 seconds min
Total Rotational Angle
360° (Endless)
Typical Applications
HAVC sensor
Rotary Angle Sensor
Environmental characteristics
Storage Temperature
-40°C to +85°C
Operating Temperature
-40°C to +85°C
Life Cycles
200,000 Cycles Min
Dry Heat
+85±3°C, 168±4H △TR : ±40%,Linearity:±3%
Cold
-40±3°C, 168 ±4H △TR:±40%,Linearity:±3 %
Humidity
60±20°C, 90~95RH, 100±4H △TR:±40%,Linearity:±3%
Temperature Cycles
-40°C~+85°C, 5cycles △TR:± 40 %,Linearity:±3 %
