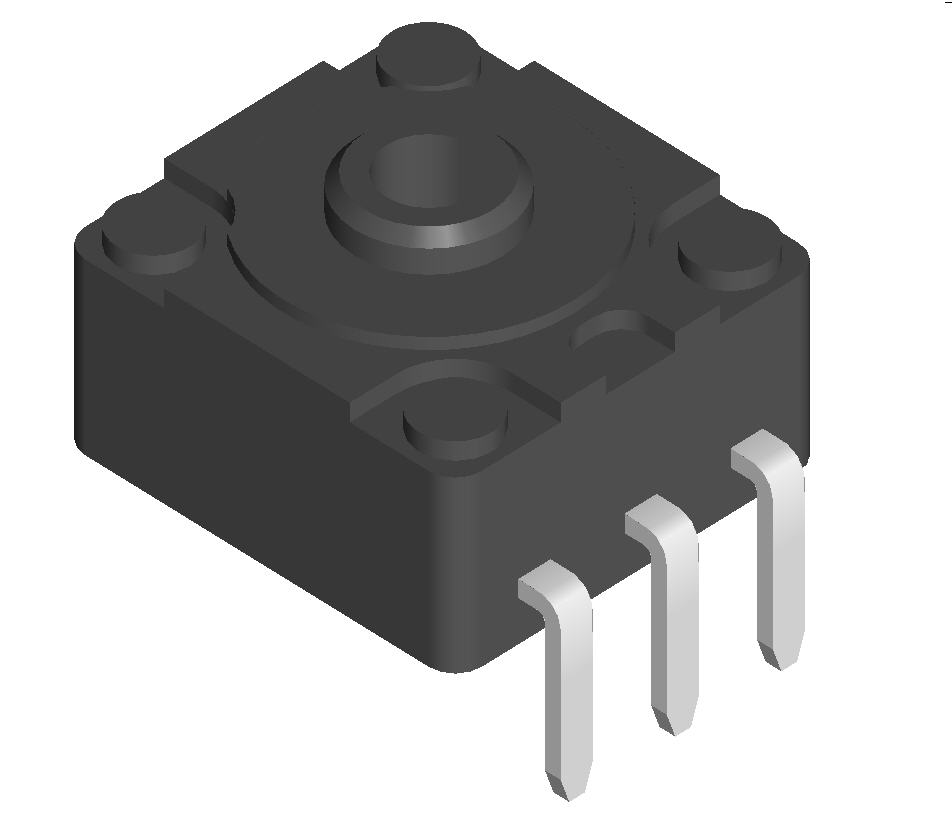

| Series | FSE07 |
| Package diameter | 7mm |
| Operating Direction | |
| Bushing material | |
| Number of Gangs | |
| Power-linear | |
| Power-audio | |
| Life cycle | 1Million cycles |
| Switch Option | N/A |
| Detent Option | N/A |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | +/-20% |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | Rotary |
| Power rating | 0.1W |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
1.High accuracy and long life over 1 million cycles
2.Stabl output characteristics can be secured for external noise and temperature changes
| Electrical characteristics | |
| Total Resistance | 500Ω~1MΩ |
| Total Resistance Tolerance | ±20% |
| Resistance Taper | B taper |
| Rated Voltage | DC 5V, AC 50V |
| Rated Power | 0.01W |
| Linearity Tolerance | Less than ±2% |
| Sliding Noise | Less than 300mV |
| Insulated Resistance | More then 100MΩ at DC25V for1 Minute |
| Withstand Voltage | 250V AC, for 1 Minute |
| Mechanical characteristics | |
| Total Rotational Angle | 360°Continuous |
| Rotational Torque | Less than 50gf.cm |
| Pull Strength of Rotational Shaft | 500gf Min |
| Environmental characteristics | |
| Storage Temperature | -40℃ to +70℃ |
| Operating Temperature | -10℃ to +70℃ |
| Dry Heat | 70±2℃,240±2h,△TR+5%/-30% |
| Cold | -30±2℃,300±5h,Without load,△TR±20% |
| Damp Heat | 70±2℃,85%RH,300±5h,△TR+35/-5% |
| Temperature Cycles | -10℃~+70℃C,5 cycles,△TR±10% |
| Rotational Life | 1 million cycles min |
| Temperature Characteristic | 70±3℃,5H,△TR+5%/-20% |
| Soldering Condition | Wave soldering:260±5℃,Sec. Max. |
| Manual Soldering | 350°C±10°C 3 Sec Max. |
