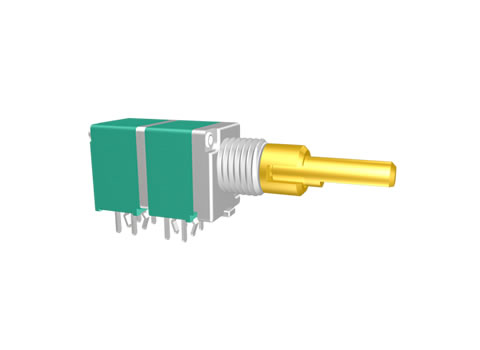

| Series | F092 |
| Package diameter | 9mm |
| Operating Direction | Horizontal Vertical |
| Bushing material | |
| Number of Gangs | 2-6 |
| Power-linear | 0.05W |
| Power-audio | 0.025W |
| Life cycle | 15K |
| Switch Option | Y |
| Detent Option | Y |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
1. Flux builded-up prevention is taken through inserting molding around the resistor with resin.
2.A large variety of products lined up to support various applications.
3.With Dual shaft adjustmeat.
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Total Resistance Tolerance | 500Ω＜R＜1MΩ:± 20% R＜500Ω or R＞1MΩ:±30% |
| Resistance Taper | A, B, C |
| Max. Operating Voltage | AC50V, DC10V |
| Rated Power | Linear Taper B: 0.05W: Other Tapers: 0.025W |
| Rotational Noise | Less than 100mv |
| Insulation Resistance | More than100MΩ at DC 250v |
| Withstand voltage | 1 minute at AC 300V |
| Residual Resistance | Term.1~2: Less than 20Ω: Term.2~3: Less than 20Ω |
| Mechanical characteristics | |
| Total Rotational Angle | 300°±10° |
| Click Torque | 50gf.cm~200gf.cm |
| Stopper Strength | 4.0Kgf.cm Min. |
| Push-Pull Strength | 6.0Kgf Min |
| Rotational Torque (outer shaft) | 5gf.cm~90gf.cm |
| Rotational Torque (inner shaft) | 3gf.cm~60gf.cm |
| Durability | |
| Rotational Life | Standard life: 15,000 Cycles Min.: Long life: 100,000 Cycles Min. |
| Switch characteristics | |
| Switch rated power | 3.0A at DC 16v |
| Switch Contact Resistance | Less than 100mΩ |
| Switch Angle | 50 °Max |
| Switch torque | 100~350gf.cm |
