| Series | F091 |
| Package diameter | 9mm |
| Operating Direction | Horizontal Vertical |
| Bushing material | |
| Number of Gangs | 1-6 |
| Power-linear | 0.05W |
| Power-audio | 0.025W |
| Life cycle | 15K |
| Switch Option | Y |
| Detent Option | Y |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution

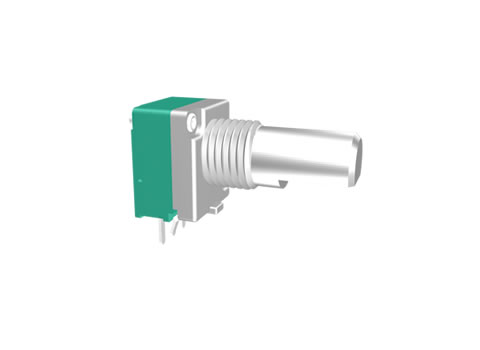

F091 Series
Metal shaft Potentiometer
Feature
1. Flux build-up prevention is taken through inserting molding around the resistor with resin.
2. A large variety of products lined up to support various applications.
3. Long Life Type Available
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Total Resistance Tolerance | 500Ω＜R＜1MΩ:± 20% R＜500Ω or R＞1MΩ:±30% |
| Resistance Taper | A, B, C |
| Max. Operating Voltage | AC50V.DC10V |
| Rated Power | Linear Taper B: 0.05W Other Tapers: 0.025W |
| Rotational Noise | Less than 100mv |
| Insulation Resistance | More than 100MΩ at DC 250v |
| Withstand voltage | 1 minute at AC 300V |
| Residual Resistance | Term.1~2: Less than 20Ω Term.2~3: Less than 20Ω |
| Gang Error (Dual Unit or Multi Unit) | -40dB~0dB ± 3dB |
| Mechanical characteristics | |
| Total Rotational Angle | 300°± 10° |
| Rotational Torque | 5~90gf.cm |
| Click Torque | 50gf.cm~200gf.cm |
| Rotational Stopper Strength | 4.0Kgf.cm Min. |
| Push-Pull Strength | 6.0Kgf Min |
| Bushing nut tighten strength | 8.0Kgf.cm Min |
| Number of detents (click) | 1C (Center Detent), 11C, 21C, 41C |
| Durability | |
| Operating temperature range | -10°C ~ +70°C |
| Storage temperature range | -30°C ~ +80°C |
| Rotational Life | 15,000 Cycles |
| Switch characteristics | |
| Contact resistance | Less than 100mΩ |
| Switch rated power | Push: 0.5A at DC 12V Rotational：3.0A at DC 16V |
| Switch push stroke length | 0.5+0.5/-0.3mm |
| Switch Rotational Angle | 50° Max |
| Switch torque | Push: 250~550gf Rotational: 100~350gf.cm |
| Switch circuit | S.P.S.T & D.P.S.T |
| Switch life | 15,000 Cycles Min. |
